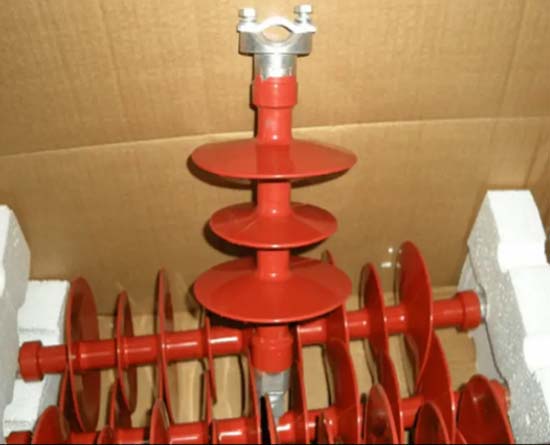

棒形悬式复合绝缘子
复合绝缘子型号 | 额定电压kV | 额定机械负荷kN | 结构高度mm | 绝缘距离mm | 最小公称爬电距离mm | 雷电冲击耐受电压（峰值）kV | 1min工频耐受电压（有效值）kV | FXBW4-10/70 | 10 | 70 | 380 | 200 | 480 | 95 | 45 | FXBW4-10/100 | 10 | 100 | 420 | 200 | 480 | 95 | 45 | FXBW4-20/70 | 20 | 70 | 460 | 280 | 744 | 125 | 65 | FXBW4-20/100 | 20 | 100 | 500 | 280 | 744 | 125 | 65 | FXBW4-35/70 | 35 | 70 | 640 | 450 | 1200 | 230 | 95 | FXBW4-35/100 | 35 | 100 | 680 | 450 | 1200 | 230 | 95 | FXBW4-66/70 | 66 | 70 | 900 | 720 | 2250 | 410 | 185 | FXBW4-66/100 | 66 | 100 | 940 | 720 | 2250 | 410 | 185 | FXBW4-110/70 | 110 | 70 | 1200 | 1000 | 3150 | 550 | 230 | FXBW4-110/100 | 110 | 100 | 1240 | 1000 | 3150 | 550 | 230 | FXBW4-110/120 | 110 | 120 | 1240 | 1000 | 3150 | 550 | 230 | FXBW4-220/100 | 220 | 100 | 2210 | 1960 | 6300 | 1000 | 395 | FXBW4-220/160 | 220 | 160 | 2240 | 1960 | 5900 | 1000 | 395 | FXBW4-330/160 | 330 | 160 | 2990 | 2700 | 8300 | 1425 | 570 | FXBW4-500/160 | 500 | 160 | 4450 | 4150 | 12900 | 2250 | 740 |
|
